T360 Remotely Operated Weapon System
More Pop, Less SWaP
Developed originally by Precision Remotes LLC (PRL), the T360 Remote Weapon Station is the world’s lightest remote weapon station able to carry, precisely aim, and fire the M240 7.62mm medium machine gun and LWMMG .338 light machine gun.
This mission flexibility comes in a package with minimum SWaP (size, weight, and power). T360 weighs 145 pounds (66 kg) when fully equipped with an M240 Bravo and 500 rounds of 7.62×51 ammo. The entire system, except for the weapon barrel, fits in a cube roughly 23 inches (590 mm) on a side.
Goes Where Others Cannot
T360’s low weight and power requirements make it particularly suitable for battery-powered vehicles, both unmanned and manned.
The weight difference between T360 and other “light” ROWS translates into 35 to 60 kg of additional carrying capacity — enough to carry an extra 1,400 linked 7.62×51 rounds, 350 linked M2 ball rounds, or 9 to 15 gallons of water.
Tactically Flexible

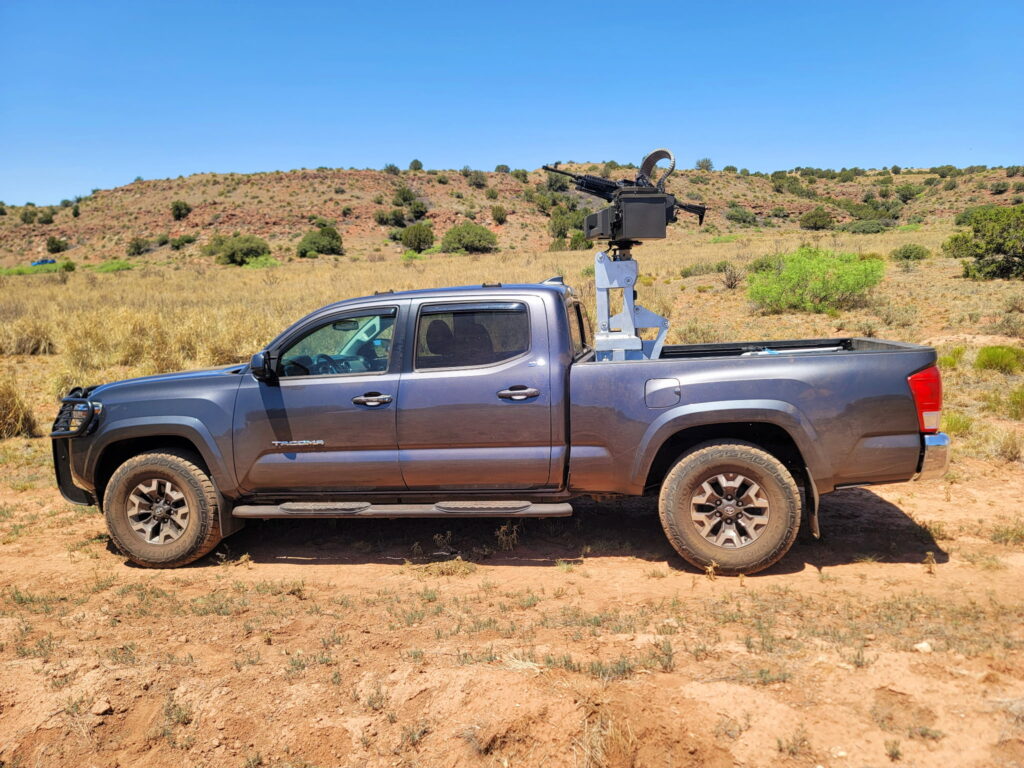

When the mission changes, T360 moves easily from one position to another. Its self-contained, modular design allows fast, easy mounting on tripods, telescoping masts, pickup trucks, and ATVs. T360 uses existing weapons without modification. Flipping two levers allows the T360 weapon to be aimed and fired manually without removal or the weapon can be easily removed, as circumstances require.
Features
- 24/7 operation with built-in day camera, thermal imager, and laser rangefinder
- Ballistic aim point adjusts for range, ammunition, and parallax
- 360° traverse.
- No Fire zones can be defined in software or by setting physical hard stops.
- Elevation range 20° down/60° up. Tower mounted configurations for perimeter security allow 75° down/5° up.
- Weight: ~37 kg (~80 lbs.) excluding weapon and ammunition
- Max ammunition load: 600 rounds
- Operate the system using the handheld Rugged Controller Unit (RCU) or computer.
- Multiple systems can be controlled by one operator using IEC’s BattleStation software.
- Weapons install without tools or modification. A full system can be assembled or disassembled by a single person.
- System mounts on standard NATO 2.5″ or MK16 pintle
- Firing modes include semi-automatic, three-round burst, and full auto.
Precision Remotes is now part of IEC Infrared Systems.
